Specifications

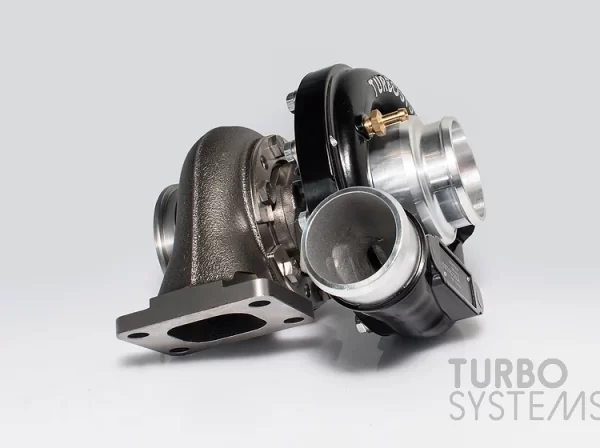

High performance turbocharger with 8cm2, 0.61AR T25/T2 single scroll turbine housing designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range: 350-450 HP

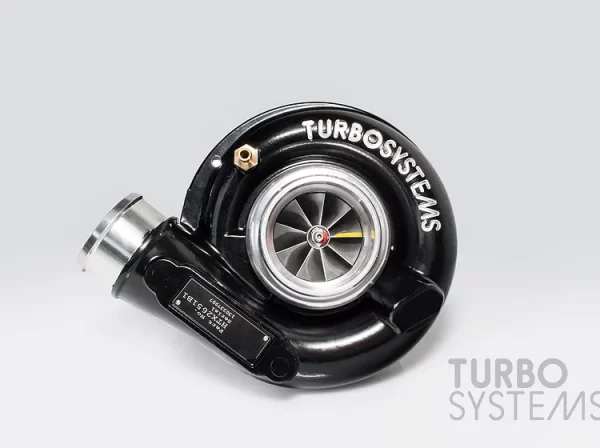

Compressor side:
- Ported shroud compressor housing
- Compressor wheel: in-house made, reinforced 51/63 mm 9+0 blades machined from the solid aluminium
- Intake:
- Straight compressor housing – 63mm (2,5″)
- Compressor housing with 90° elbow – 76mm (3″)
- Air outlet: 51mm (2″)
Core:
- Bearings: dual ceramic ball bearings
- Cooling: water cooling with 2 x M14x1.5 ports
- Lubrication: AN4 oil inlet with integrated oil restrictor

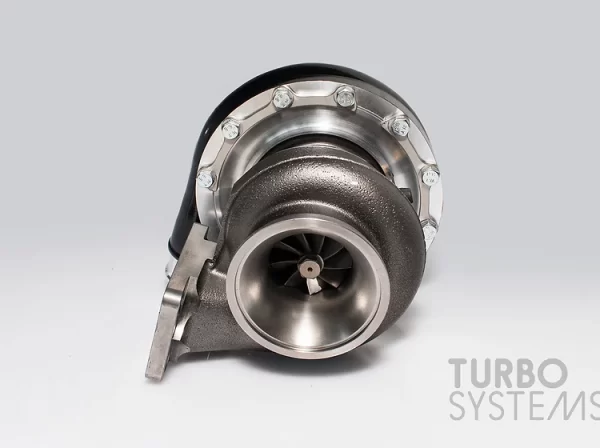

Turbine side:
- Housing: single scroll, 8cm2 AR: 0.61
- Turbine wheel: custom design 55/49mm 10 blades

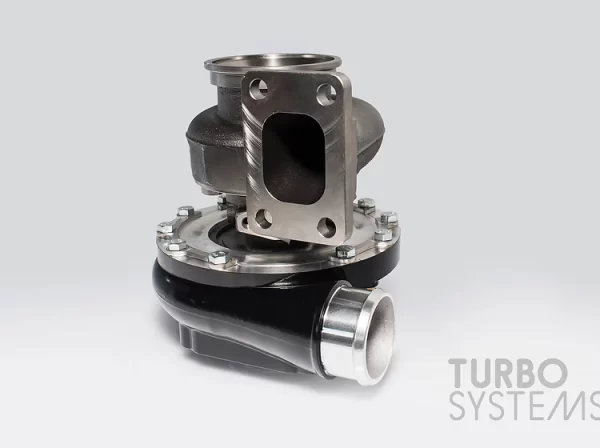

- Flange: T25/T2 single scroll
- Exhaust connection: 3″ V-band clamp
