Specifications

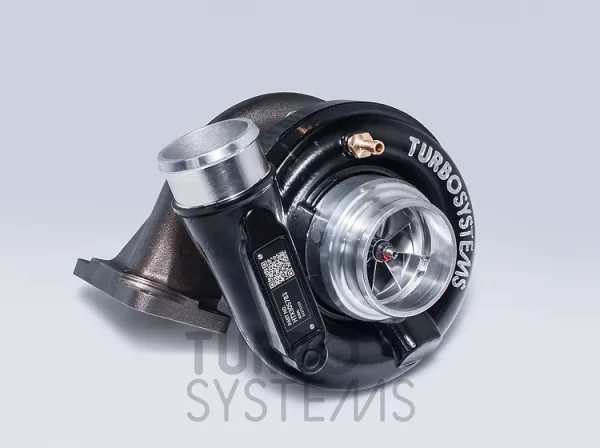

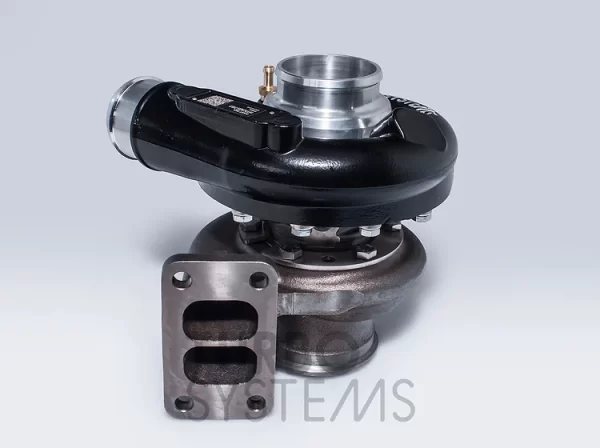

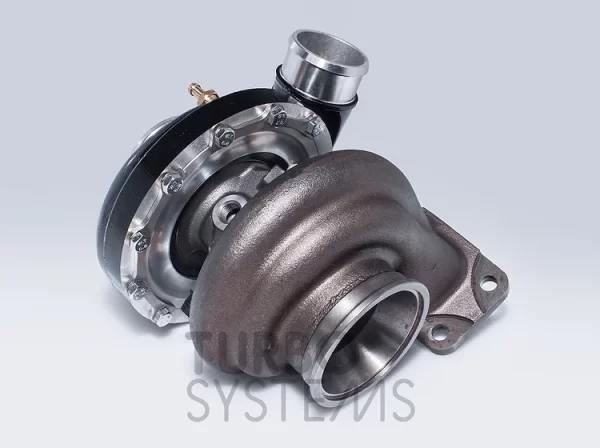

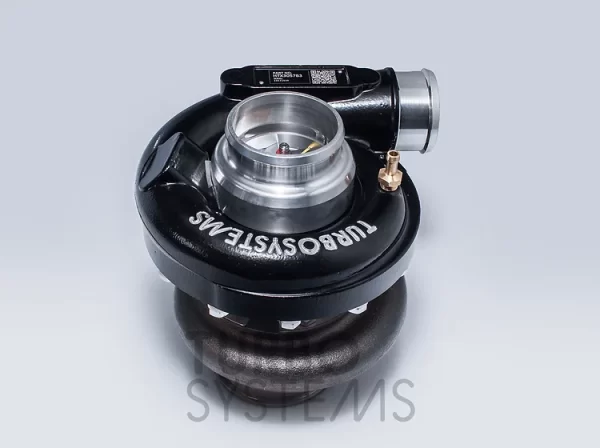

High performance turbocharger with 12cm2, 0.89 AR twin scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range: 450-550 HP
Compressor side:
- Ported shroud compressor housing
- Compressor wheel: in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium
- Intake:
- Straight compressor housing – 63mm (2,5″)
- Compressor housing with 90° elbow – 76mm (3″)
- Air outlet: 51mm (2″)
Core:
- Bearings: dual ceramic ball bearings
- Cooling: water cooling with 2 x M14x1.5 ports
- Lubrication: AN4 oil inlet with integrated oil restrictor
Turbine side:
- Housing: twin scroll , 12cm2 AR: 0.89
- Turbine wheel: custom design 60/55mm 9 blades
- Flange: 3″ T3 twin scroll
- Exhaust connection: 3″ V-band clamp
